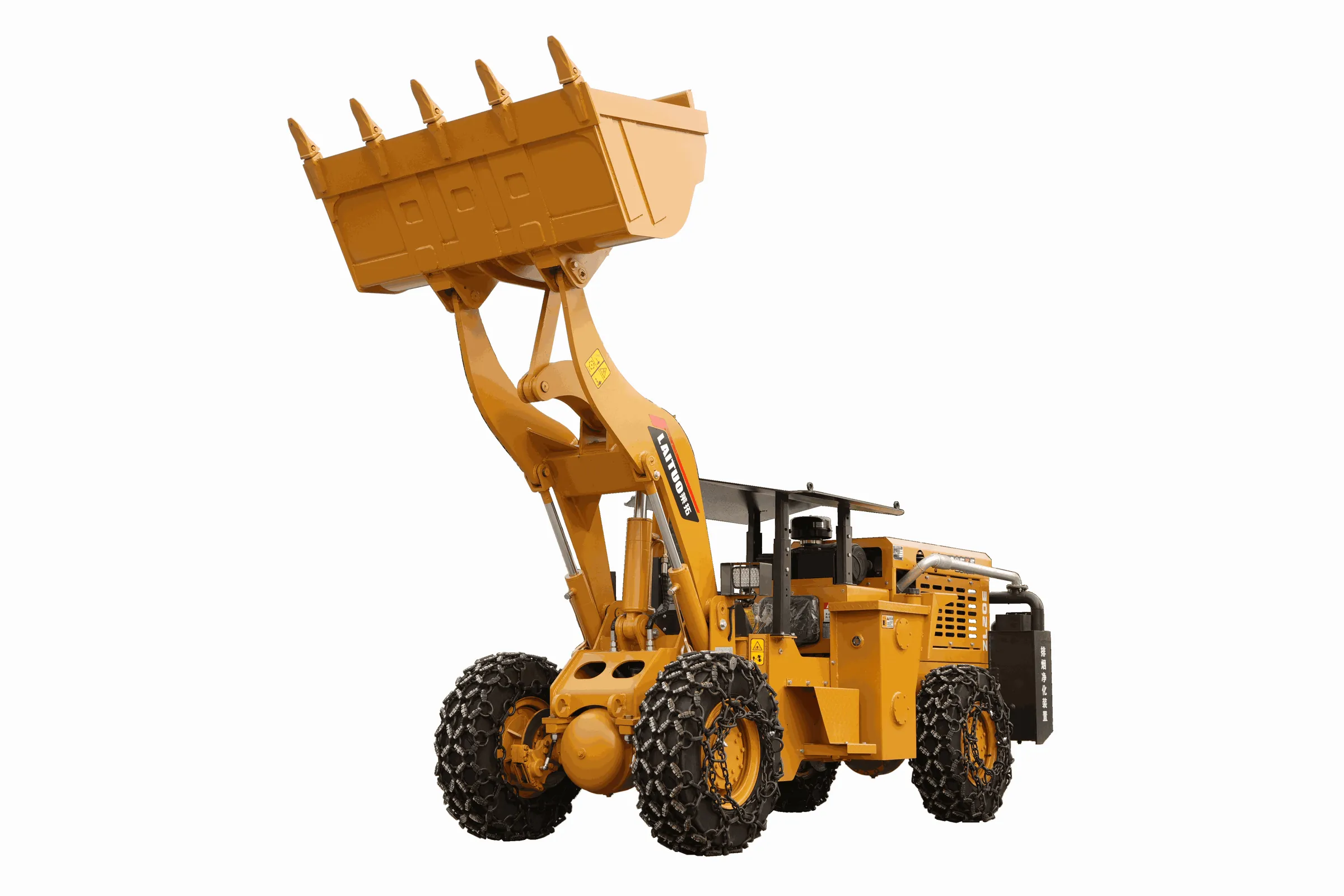

LT926 Underground Loader
2 t load in a 1400 mm narrow body, 1650 mm high
2 t load in a 1400 mm narrow body, 1650 mm high
The lowest, narrowest machine in the Laituo range: 2-tonne rated load in a 1400 mm or 1600 mm body just 1650 mm tall, with adjustable cab height and a Yunnei 4102 turbocharged engine.
- MA / coal-safety and national-standard mine certification
- 20+ invention and utility model patents
- Innovative SME & 'Specialized and Sophisticated' SME
- Exhaust water-scrubbing purifier standard
- Customisable buckets, attachments and machine width
| Rated load | 2.0 t |
|---|---|
| Standard bucket | 0.8 m³ |
| Operating weight | 4500 kg |
| Max. breakout force | 50 kN |
| Max. dump height | 1800 mm |
| Max. drawbar pull | 40 kN |
| Dimensions | 5300 × 1400/1600 × 1650 mm |
| Transmission | 2 forward / 2 reverse |
| Engine power | 76 kW |
| Max. travel speed | 13 km/h |
