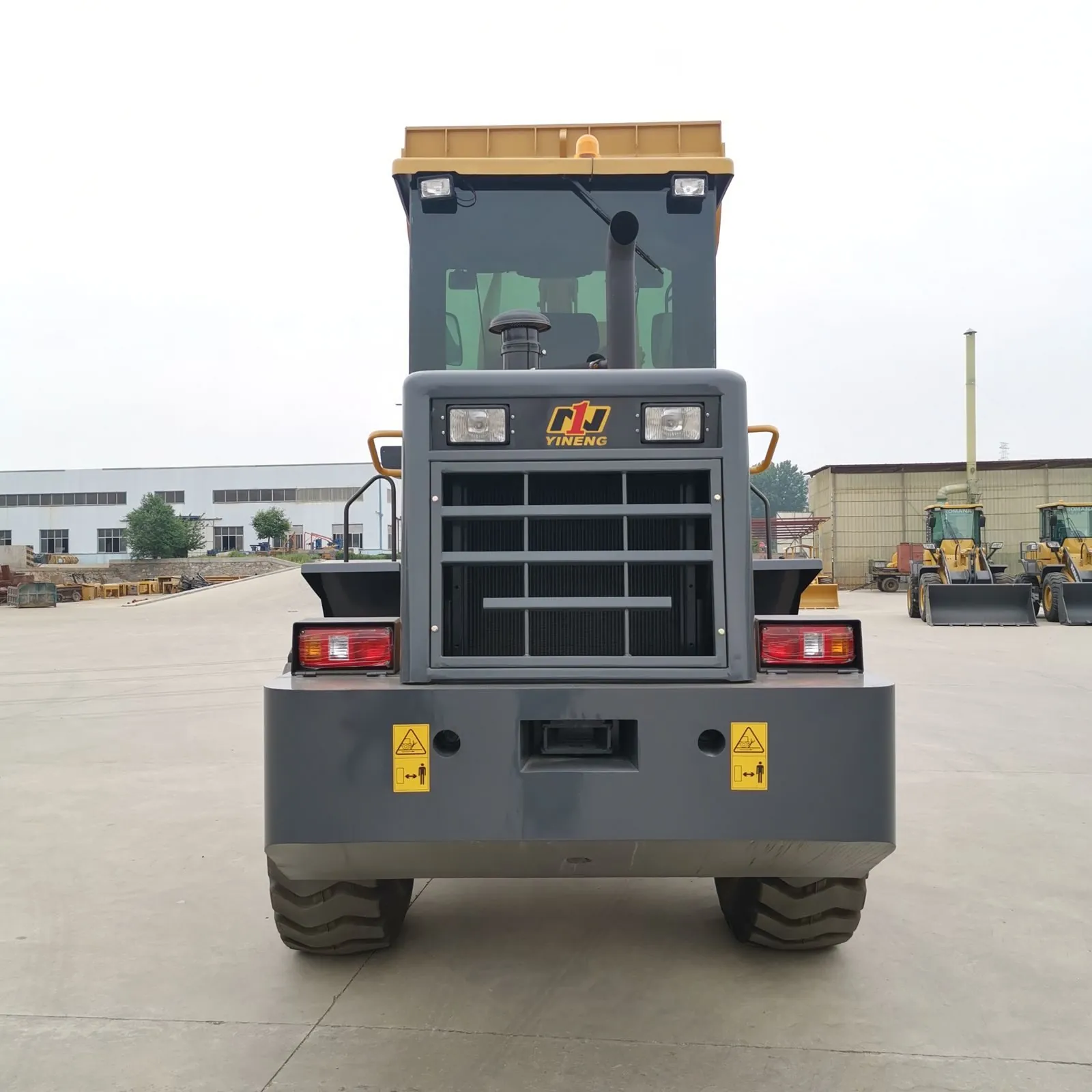

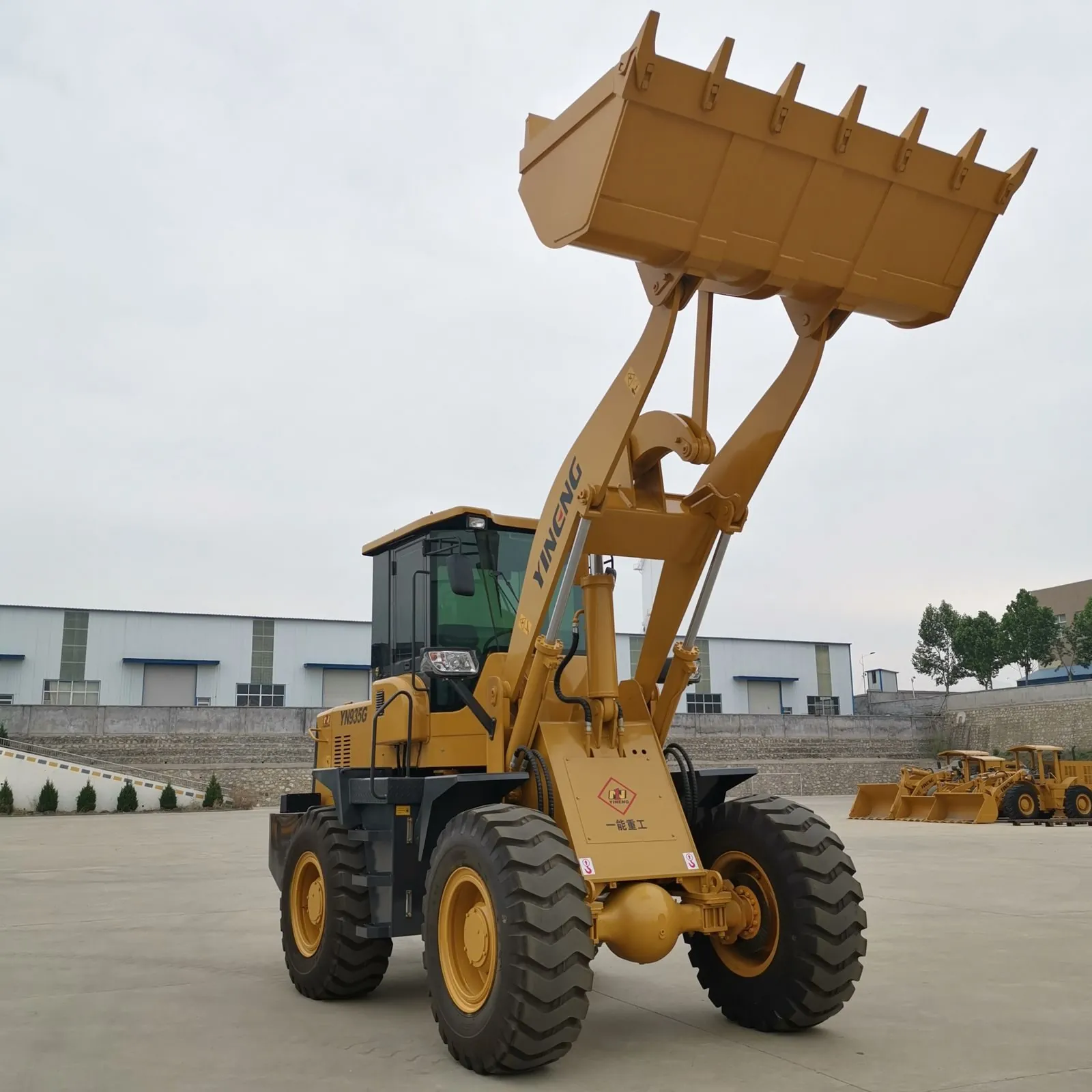

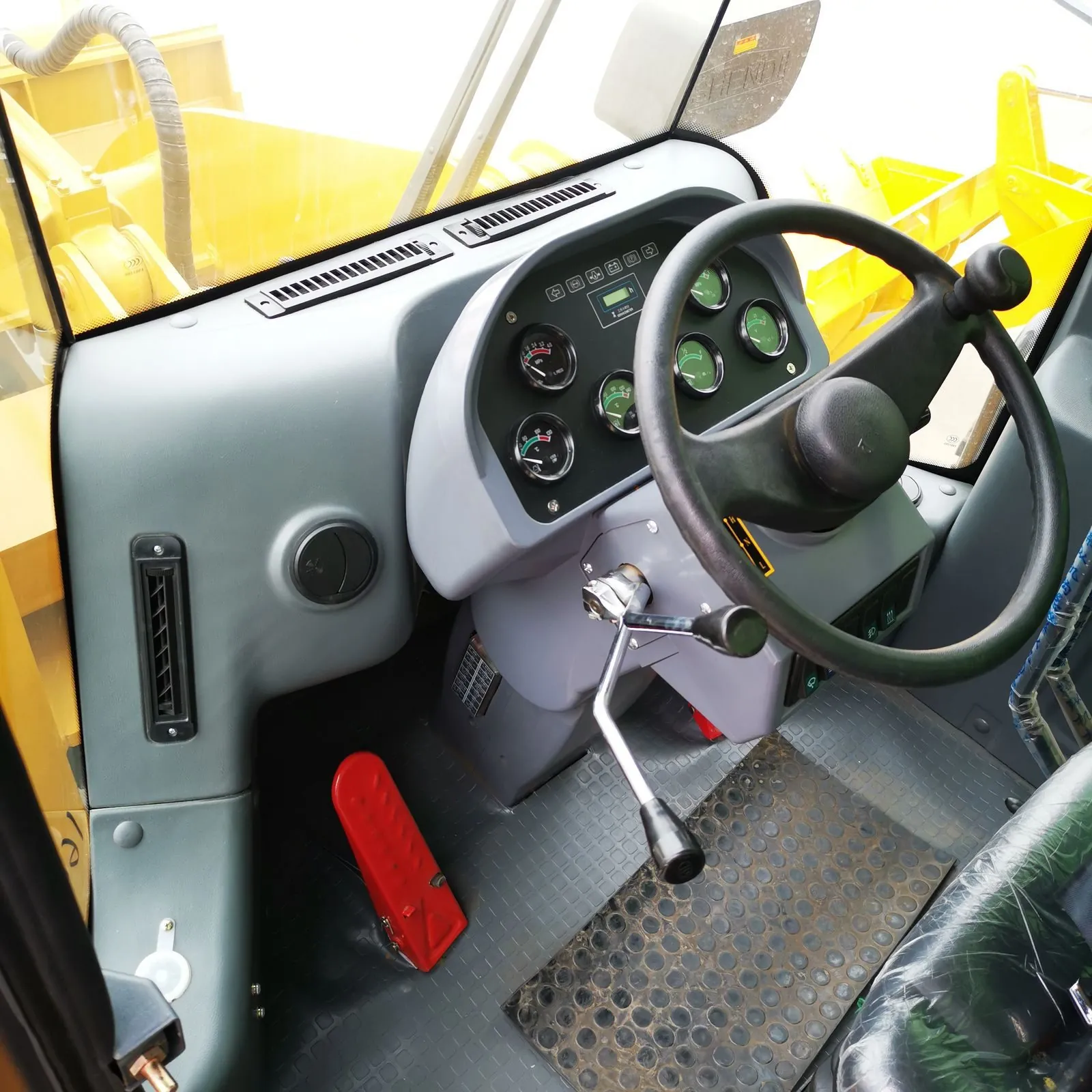

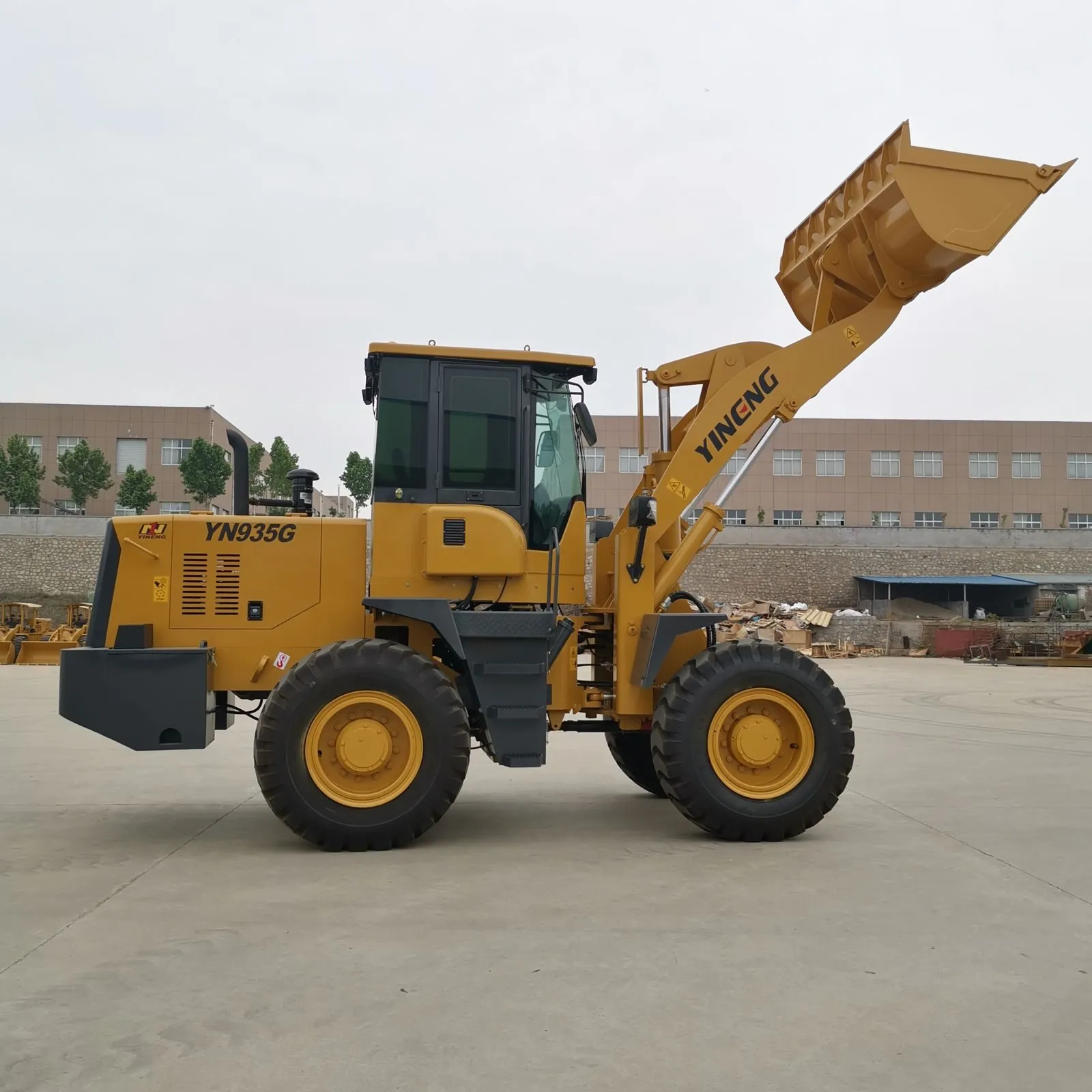

YN935G Wheel Loader
The YN935G is Yineng's flagship export wheel loader: a 10.2-ton machine with a 3,000 kg rated load, 92 kW Yuchai WP6G125E23 engine and a reinforced bucket built for quarry, mining and heavy construction duty.
The YN935G is Yineng's flagship export wheel loader: a 10.2-ton machine with a 3,000 kg rated load, 92 kW Yuchai WP6G125E23 engine and a reinforced bucket built for quarry, mining and heavy construction duty.
- CE approved
- ISO 9001:2008 certified
- Manufacturing license TS2510025-2009
| Rated load | 3000 kg |
|---|---|
| Rated power WP6G125E23 | 92 kW / 2200 rpm |
| Operating weight | 10200 kg |
| Dumping height | 3050 mm |
| Dumping reach | 1105 mm |
| Max. breakout force | 120 kN |
| Max. drawing force | 90 kN |
| Overall dimensions | 6990 x 2420 x 3000 mm |
| Wheel base | 2600 mm |
| Wheel tread | 1800 mm |
| Min. ground clearance | 410 mm |
| Min. turning radius (outside rear wheel) | 5160 mm |
| Boom lifting time | 5.5 s |
| Max. speed | 38 km/h |
| Tyre | 17.5-25 |
Inquire about YN935G Wheel Loader
Send your model, quantity and destination port. Our desk replies within one working day with an FOB or CIF quotation.
